Model | T200-150 |
Maximum Deployment Weight | 150kg |
Maximum Deployment Speed | 110 km/h |
System Weight | 3.8kg |
Container Dimensions (mm) | Φ206*208mm |
Deployment Time | 1.5s |
Minimum Deployment Altitude | 50m |
Maximum Deployment Load | 5.5g |
Maximum Descent Speed (at 1500 m AMSL, standard temperature) | 5.5m/s (equivalent to a fall from 1.5meters) |
Parachute Shape | Square |
Main Canopy Area | 40 ㎡ |
Operating Temperature | -20~60℃ |
Protection Rating | IP55 |
Parachute Activation Method | Flight Control Activation Autonomous Activation |
ECU Communication Protocol | CAN/RS-232/PWM |
Black Box Functionality | Yes |
System Service Life | 2years |
The T193 Emergency Recovery Parachute System is tailored to fulfill the safety needs of eVTOLs, low-altitude multirotors, and similar aerial vehicles. This state-of-the-art system employs a gas-ejection mechanism for parachute deployment, providing rapid and dependable activation in critical situations. It offers multiple activation modes, including manual operation, flight control system-triggered deployment, and autonomous activation for enhanced operational flexibility.

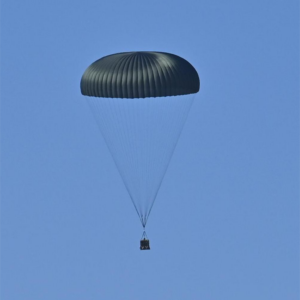

SkyEagle cargo parachute systems are reliable, military-grade systems designed for the safe aerial delivery of bulk cargo. They are engineered to stabilize and decelerate the load during descent, ensuring safe and precise delivery from aircraft. While they are predominantly used for military operations, such as resupply missions, these cargo parachute systems can also be employed for humanitarian aid deliveries. The design of the system makes it simple for personnel to manage and quickly deploy in the field.
