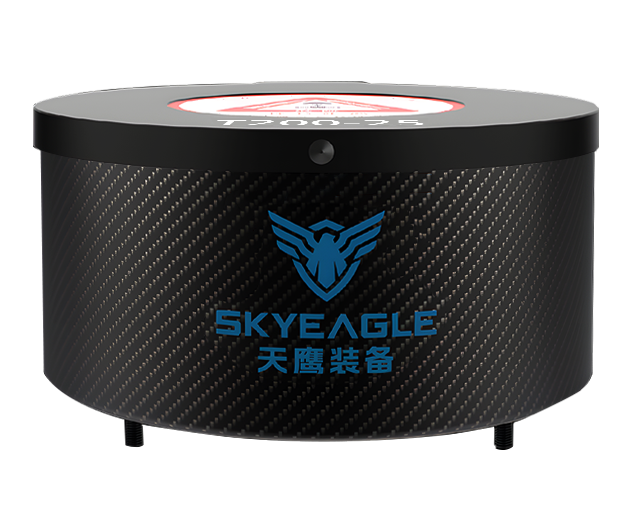

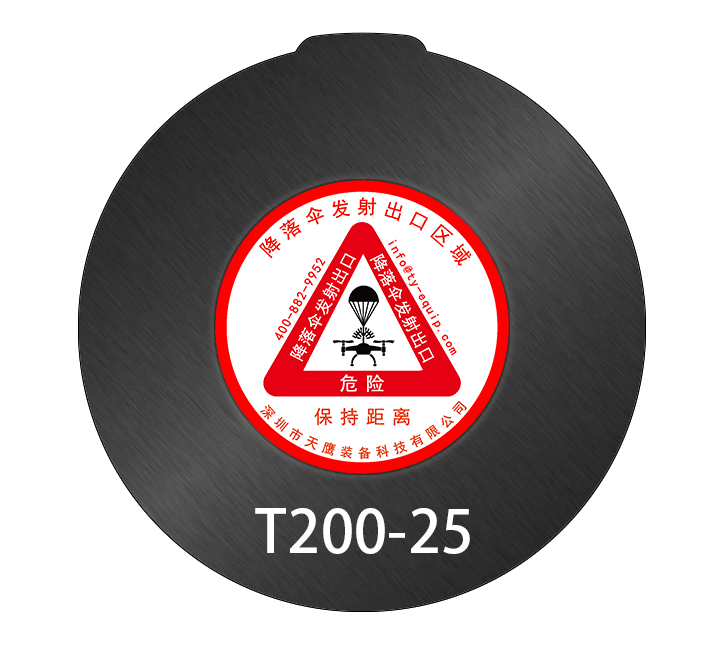

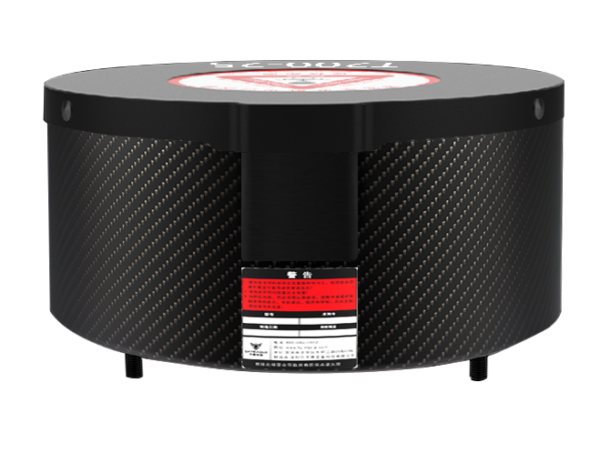

Model | T200-25 |
Maximum Deployment Weight | 25kg |
Maximum Deployment Speed | 110 km/h |
System Weight | 0.87kg |
Container Dimensions (mm) | Φ169*71mm |
Deployment Time | 1.2 s |
Minimum Deployment Altitude | 30m |
Maximum Deployment Load | 5.5g |
Maximum Descent Speed (at 1500 m AMSL, standard temperature) | 5 m/s(equivalent to a fall from 1.3 meters) |
Parachute Shape | Square |
Main Canopy Area | 9.4 ㎡ |
Operating Temperature | -20~60℃ |
Protection Rating | IP55 |
Parachute Activation Method | Flight Control Activation Autonomous Activation |
ECU Communication Protocol | CAN/RS-232/PWM |
Black Box Functionality | Yes |
System Service Life | 2years |
The T181 Aircraft Parachute Recovery System (APRS) utilizes a Mechanical Activation Rocket to provide essential safety for fixed-wing aircraft in emergency situations. When an aircraft faces significant malfunctions or loss of control, the system slows the descent, helping to stabilize the flight and ensuring a controlled and safe landing.
The T193 Emergency Recovery Parachute System is tailored to fulfill the safety needs of eVTOLs, low-altitude multirotors, and similar aerial vehicles. This state-of-the-art system employs a gas-ejection mechanism for parachute deployment, providing rapid and dependable activation in critical situations. It offers multiple activation modes, including manual operation, flight control system-triggered deployment, and autonomous activation for enhanced operational flexibility.
SkyEagle cargo parachute systems are military-grade aerial delivery solutions primarily meant for transporting bulk cargo. These systems are specifically designed to decelerate and stabilize the loads during descent, ensuring safe and accurate delivery from aircraft. Though primarily used for military tasks, including resupply missions, the cargo parachute system is adaptable for humanitarian aid drops. Its efficient design enables personnel to deploy it with ease and speed in the field.
