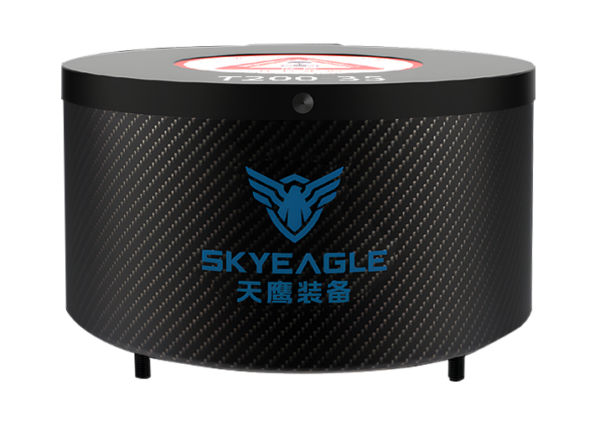

Model | T200-35 |
Maximum Deployment Weight | 35kg |
Maximum Deployment Speed | 110 km/h |
System Weight | 0.95kg |
Container Dimensions (mm) | Φ169*90mm |
Deployment Time | 1.2 s |
Minimum Deployment Altitude | 30m |
Maximum Deployment Load | 5.5g |
Maximum Descent Speed (at 1500 m AMSL, standard temperature) | 5.5m/s (equivalent to a fall from 1.5meters) |
Parachute Shape | Square |
Main Canopy Area | 12 ㎡ |
Operating Temperature | -20~60℃ |
Protection Rating | IP55 |
Parachute Activation Method | Flight Control Activation Autonomous Activation |
ECU Communication Protocol | CAN/RS-232/PWM |
Black Box Functionality | Yes |
System Service Life | 2years |
The T193 Emergency Recovery Parachute System is tailored to fulfill the safety needs of eVTOLs, low-altitude multirotors, and similar aerial vehicles. This state-of-the-art system employs a gas-ejection mechanism for parachute deployment, providing rapid and dependable activation in critical situations. It offers multiple activation modes, including manual operation, flight control system-triggered deployment, and autonomous activation for enhanced operational flexibility.
SkyEagle cargo parachute systems are high-performance, military-grade delivery systems primarily used to transport bulk cargo. The system is designed to stabilize and slow the descent of loads, ensuring that they are safely and effectively delivered from aircraft. While primarily intended for military operations, such as resupply missions, the cargo parachute system is also versatile enough for humanitarian aid deliveries. Its easy-to-use design allows personnel to handle and deploy it quickly in the field.
